HPE PROLIANT DL360 GEN11
The HPE ProLiant DL360 Gen11 supports the 4th Generation Intel® Xeon® Scalable Processors with up to 56 cores, plus 4800 MT/s HPE
DDR5 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen5 and Intel® Software Guard Extensions (SGX) support on the
dual-socket segment, the HPE ProLiant DL360 Gen11 complements Gen10 Plus reach by delivering premium compute, memory, networking
communication, I/O, and security capabilities for customers focused on performance at any cost. DL360 Gen11 server is an
execellent choice of daily business and workloads in General Compute, Database Management, Virtual Desktop Infrastructure, Content
Delivery Network and Intelligent Video Analytics
DDR5 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen5 and Intel® Software Guard Extensions (SGX) support on the
dual-socket segment, the HPE ProLiant DL360 Gen11 complements Gen10 Plus reach by delivering premium compute, memory, networking
communication, I/O, and security capabilities for customers focused on performance at any cost. DL360 Gen11 server is an
execellent choice of daily business and workloads in General Compute, Database Management, Virtual Desktop Infrastructure, Content
Delivery Network and Intelligent Video Analytics
WHAT'S NEW
* Powered by 4th Gen Intel® Xeon® Scalable processors with next-generation technology that supports up to 60 cores at 350W, and 16
DIMMs for up to 8 TB of high bandwidth DDR5 memory up to 4800 MHz.
* 16 DIMMs per processor for up to 8 TB total DDR5 memory per server with increased performance, High Bandwidth Memory (HBM)
support, and lower power requirements.
* Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2
OCP slots.
* Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor,
and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
* Supports up to 2 single wide (SW) GPUs[1] to accelerate graphic intense workloads.
* Supports Smart Cooling Modules for highest thermal design points (TDPs).
DIMMs for up to 8 TB of high bandwidth DDR5 memory up to 4800 MHz.
* 16 DIMMs per processor for up to 8 TB total DDR5 memory per server with increased performance, High Bandwidth Memory (HBM)
support, and lower power requirements.
* Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2
OCP slots.
* Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor,
and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
* Supports up to 2 single wide (SW) GPUs[1] to accelerate graphic intense workloads.
* Supports Smart Cooling Modules for highest thermal design points (TDPs).

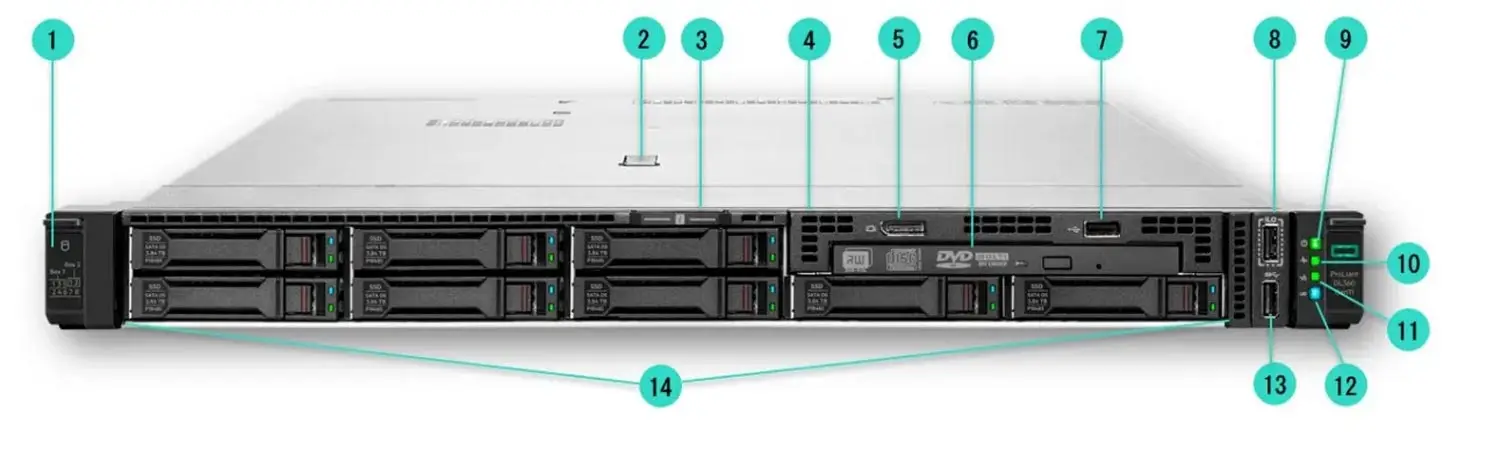

8 SFF Front View – 8 SFF + optional Universal Media Bay, optical drive, Display Port, USB2.0 and SAS drives shown
1. Drive support label
2. Quick removal access panel
3. Serial number/iLO information pull tab (optional - shown)
4. Universal Media Bay (optional): • Option: Optical drive bay + Display port & USB 2.0 port kit (shown) • Option: 2 SFF 24G x4
Tri-Mode SAS/SATA/U.3 NVMe cage
5 Display Port (optional – shown)
6 Optical drive (optional – shown)
7 USB2.0 port (optional)
8. iLO Service port
9. Power On/Standby button and system power LED
10. Health LED
11. NIC status LED
12.Unit ID button/LED
13. USB 3.2 Gen1 port
14. Drive bays; optional backplanes: • Option: 8 SFF x1 24G Tri-Mode SAS/SATA/U.3 NVMe • Option: 8 SFF x4 24G Tri-Mode
SAS/SATA/U.3 NVMe
2. Quick removal access panel
3. Serial number/iLO information pull tab (optional - shown)
4. Universal Media Bay (optional): • Option: Optical drive bay + Display port & USB 2.0 port kit (shown) • Option: 2 SFF 24G x4
Tri-Mode SAS/SATA/U.3 NVMe cage
5 Display Port (optional – shown)
6 Optical drive (optional – shown)
7 USB2.0 port (optional)
8. iLO Service port
9. Power On/Standby button and system power LED
10. Health LED
11. NIC status LED
12.Unit ID button/LED
13. USB 3.2 Gen1 port
14. Drive bays; optional backplanes: • Option: 8 SFF x1 24G Tri-Mode SAS/SATA/U.3 NVMe • Option: 8 SFF x4 24G Tri-Mode
SAS/SATA/U.3 NVMe

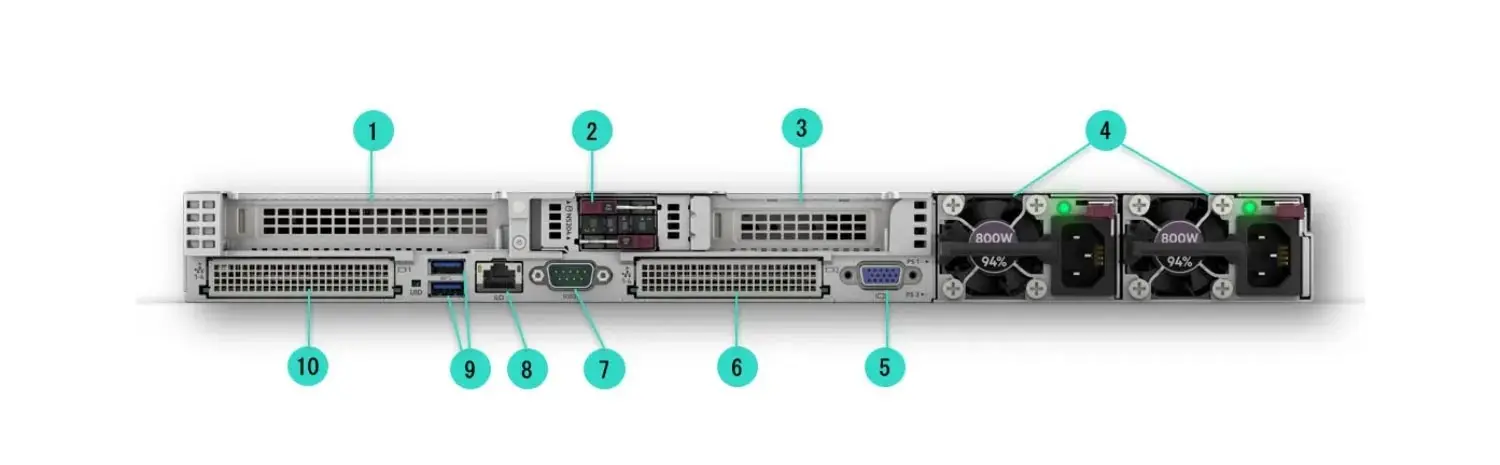

Rear View - Standard for all DL360 Gen11
1. Slot 1 PCIe 5.0 – Full Height
2. Slot 2 PCIe 5.0 – Low Profile* Notes: *Shown with optional NS204i-u Boot Device
3. Option:Slot 3 PCIe 5.0 (Requires 2nd processor) • Low Profile and Full Height options
4. Redundant Power Supply (1 & 2 as shown)
5. Video(VGA) port
6. OCP 3.0 Slot 2: x16 PCIe 5.01,2 (Requires 2nd Processor)
7. Serial port (optional - shown)
8. iLO Management Port
9.USB 3.2 Gen1 Ports
10. OCP 3.0 Slot 1: x16 PCIe 5.01
2. Slot 2 PCIe 5.0 – Low Profile* Notes: *Shown with optional NS204i-u Boot Device
3. Option:Slot 3 PCIe 5.0 (Requires 2nd processor) • Low Profile and Full Height options
4. Redundant Power Supply (1 & 2 as shown)
5. Video(VGA) port
6. OCP 3.0 Slot 2: x16 PCIe 5.01,2 (Requires 2nd Processor)
7. Serial port (optional - shown)
8. iLO Management Port
9.USB 3.2 Gen1 Ports
10. OCP 3.0 Slot 1: x16 PCIe 5.01
